Microinjector

Inject+Matic microinjector

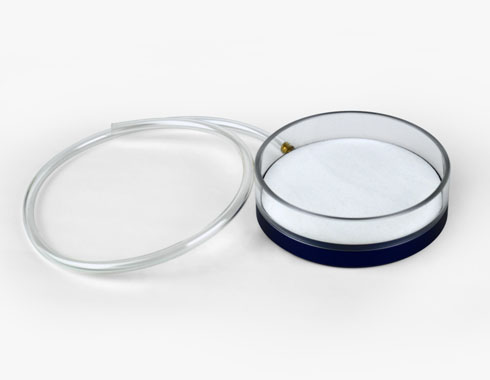

Inject+Matic Flowbed for Sleeper

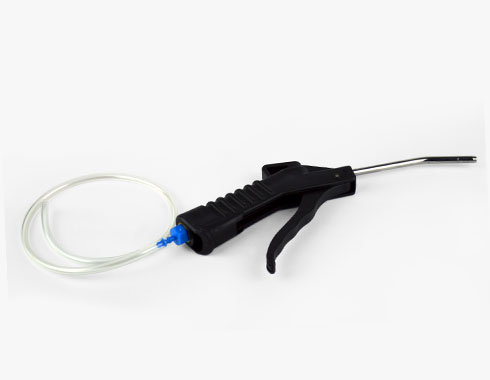

Inject+Matic Pistol for Sleeper ​
Inject+Matic Pedal for Sleeper
Inject+Matic microinjector
Inject+Matic Flowbed for Sleeper
Inject+Matic Pistol for Sleeper ​
Inject+Matic Pedal for Sleeper
previous arrow
next arrow
Category: MICROINJECTION

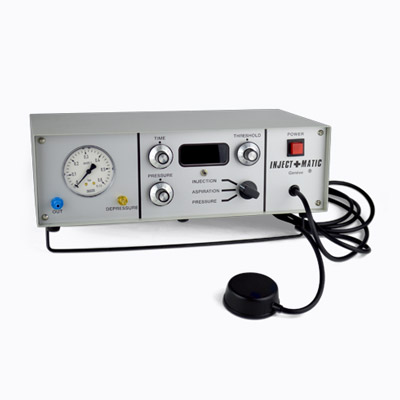

Microinjector

The INJECT + MATIC Microinjector was designed for the microinjection of DNAs, RNAs and other substance into eukaryotic cells and Xenopus oocytes. Read more

Accessories for sale:

The simplicity of manipulation and its high reliability allow the microinjection of any biological sample into living cells, oocytes, as well as other applications in biotechnology.

The INJECT + MATIC Microinjector exerts a constant and regular pressure during an appropriate fraction of time, thus allowing the transfer of a constant and controlled volume in every injection providing a good cell viability.

The INJECT + MATIC Microinjector is an independent instrument which does not require any pressure or vacuum supply. It contains a block with a pressure pump and a vacuum pump under electronic control.

The INJECT + MATIC Microinjector contains an inner pressure generator which is regulated by an electronic program to ensure the accuracy of the sample volume microinjected.

Structure in metal.

Technical data: width 350mm | height 110mm | depth: 200mm | weight: 5kg | injection pressure: 0.01 – 0.6 bar

Price: 7445CHF. Our prices are in Swiss franc; we can establish a quotation on request in any currency, including transportation costs.

Terms of sale: Indicative prices subject to change without notice. Freight&Handling Charges are not included.

INJECT + MATIC Microinjector contains an inner pressure generator which is regulated by an electronic program to ensure the accuracy of the sample volume to be microinjected.

INJECT + MATIC MICROINJECTOR PROGRAM CONTROLS FOUR PARAMETERS:

1. Threshold, pressure against the capillary effect of the capillary tip
2. Pressure of injection, this pressure can be increased or decreased in a continuous way
3. Time of injection at a constant pressure
4. Depressure or decline of the injection pressure

Each parameter is manually adjusted and visualized by the analogic instrument on the frontal panel.
